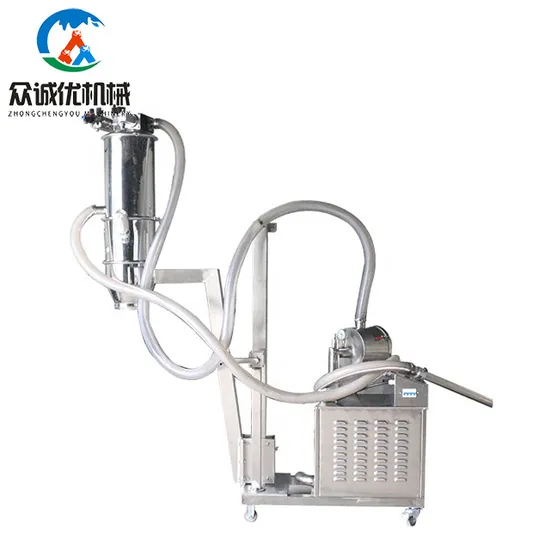

Industrial Stainless Steel Transport Vacuum Feeder Pneumatic Vacuum Conveyor Machine for Powder Granules Food Flour

Basic Info.

Model NO.	ZKS-1
Structure	Conveyor System
Material	Stainless Steel
Material Feature	Oil Resistant, Heat Resistant, Fire Resistant
Application	Chemical Industry, Grain Transport, Mining Transport
Condition	New
Product Name	Vacuum Feeder
Applicable Industries	Powder
After-Sales Service Provided	Online Support
Advantage	Save Labor High Efficiency
Lead Time	10-15 Days
Type	Moving Assembly Line
Certificate	CE ISO
Color	Customized
Support Customization	Supported
Trademark	ZHONGCHENGYOU
Origin	Xinxiang, Henan
HS Code	8428399000
Production Capacity	100sets/ Month

Packaging & Delivery

Package Size100.00cm * 160.00cm * 160.00cm Package Gross Weight260.000kg

Product Description

Product description

The vacuum conveyor is a kind of vacuum conveying equipment for powdered materials, granular materials, and powder-granule mixtures. The vacuum feeder uses electrical pump as power,it can automatically transport various materials to the vibrating screens, hoppers of silos, packaging machines, injection molding machines, crushers , and can also directly convey to mixing machine/ reactor/ pelletizer/ mill machine from containers. By this machine, we could reduce the workers' working strength and prevent the dust pollution; this could ensure the productions meet the GMP' s requirements.
Working principle
Vacuum conveyors use whirlpool pump as the power, and make the suction and all the system is in a negative pressure condition. So that materials are conveyed from suction to hopper. The material and air flow are separated in the hopper by filter. After the separation, material is conveyed to the receiving device. Feeding and unloading are switched by reversing valve. And the reversing valve is controlled by the control-center.
Product parameters

Model	Capacity(kg/h)	Power(kw)	Diameter(mm)
ZKS-1	350	1.5	Φ220*570
ZKS-2	600	2.2	Φ220*780
ZKS-3	1200	3	Φ290*850
ZKS-4	2000	4	Φ420*1150
ZKS-5	3000	5.5	Φ420*1250
ZKS-6	4000	5.5	Φ420*1350
ZKS-7	5000	7.5	Φ450*1550
